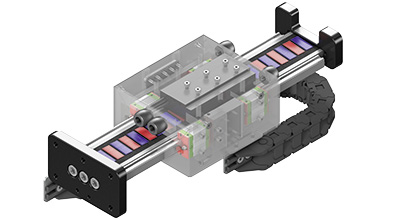

The new generation of small- to medium-load linear motor axes LMV was developed specifically for "more compact, lighter and highly dynamic" solutions. The considerably reduced moving masses and the new linear motors from the LMSA series gave rise to a highly dynamic positioning axis that can bring its advantages to bear for both horizontal and vertical applications. Unlike other linear motor axes, the HIWIN linear motor axis LMV is characterised by maximised mechanical stability in a compact, weight-optimised design.
Requirements:
- Minimum moved mass
- Compact and wear-free weight compensation
- Absolute positioning measuring system
- Acceleration of up to 50 m/s2
HIWIN components:
- Linear motor LMSA
- Linear guideways in the QE series
- Magnetic positioning measuring system
- Compact, weight-optimised axis frame
