Offenburg – The linear technology expert HIWIN has now expanded its tried-and-tested linear axes of the KK series with the new KF series, the four-row guidance of which offers optimised synchronous performance when high demands are placed on the running behaviour of the axis. The axis is available as a ready-to-install complete axis and can be used universally. Through additional options such as a cover, limit switches and additional blocks, the axis can be flexibly adapted to different requirements.

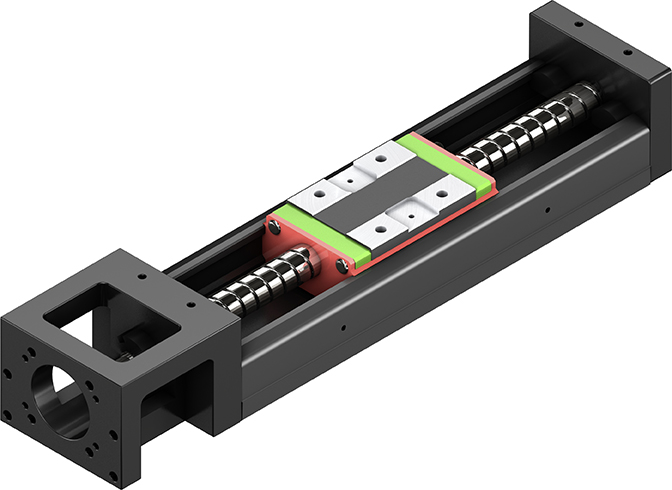

High levels of accuracy and rigidity are achieved in the linear axes of the KF series through a linear guideway in the steel profile with integrated ballscrew. The axes made of steel are particularly compact because the ballscrew is integrated into the block. They are especially suited to applications requiring high feed thrust and precision combined with high rigidity. The axis is available in sizes 60 and 86 with stroke lengths of 50 to 800 mm.
