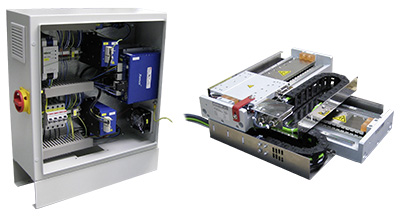

Aligning, switching on, producing... The precision cross table is delivered as a plug-and-play subsystem including a ready-to-connect switch cabinet and pluggable connecting cables. The standard linear motor axes are set up as a cross table on a granite axle carrier. Thanks to the coreless LMC linear motors used, the moved mass is reduced to a minimum. The cross table excels due to its outstanding dynamism, synchronism and accuracy.
Requirements:
- Delivered as a plug-and-play subsystem
- Customer requirements for the installed servo drives
- Large number of cycles
- High repeat accuracy
HIWIN components:
- LMX1E single axes
- Coreless LMC linear motors
- Linear guideways
- Ready-made connecting cables
